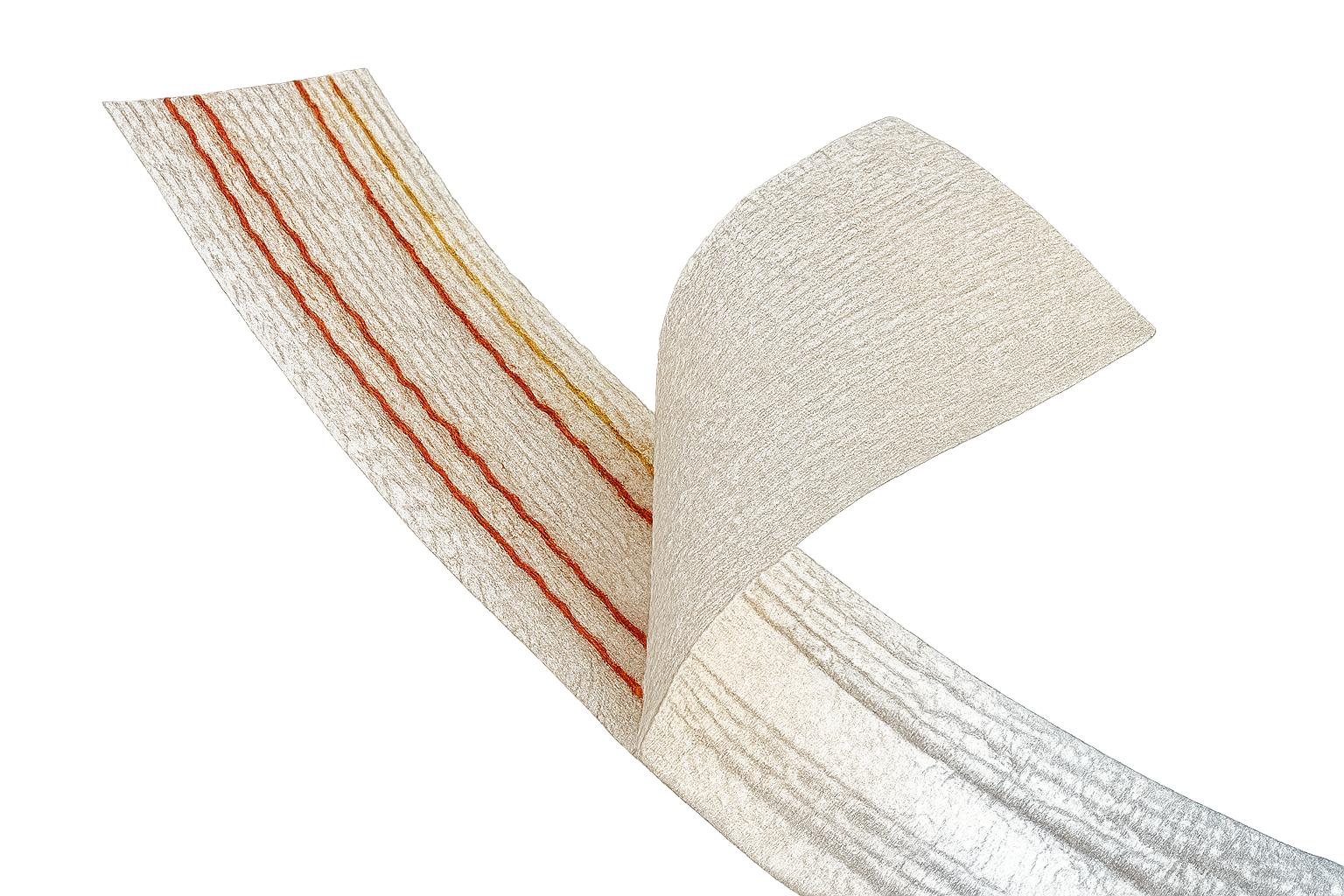

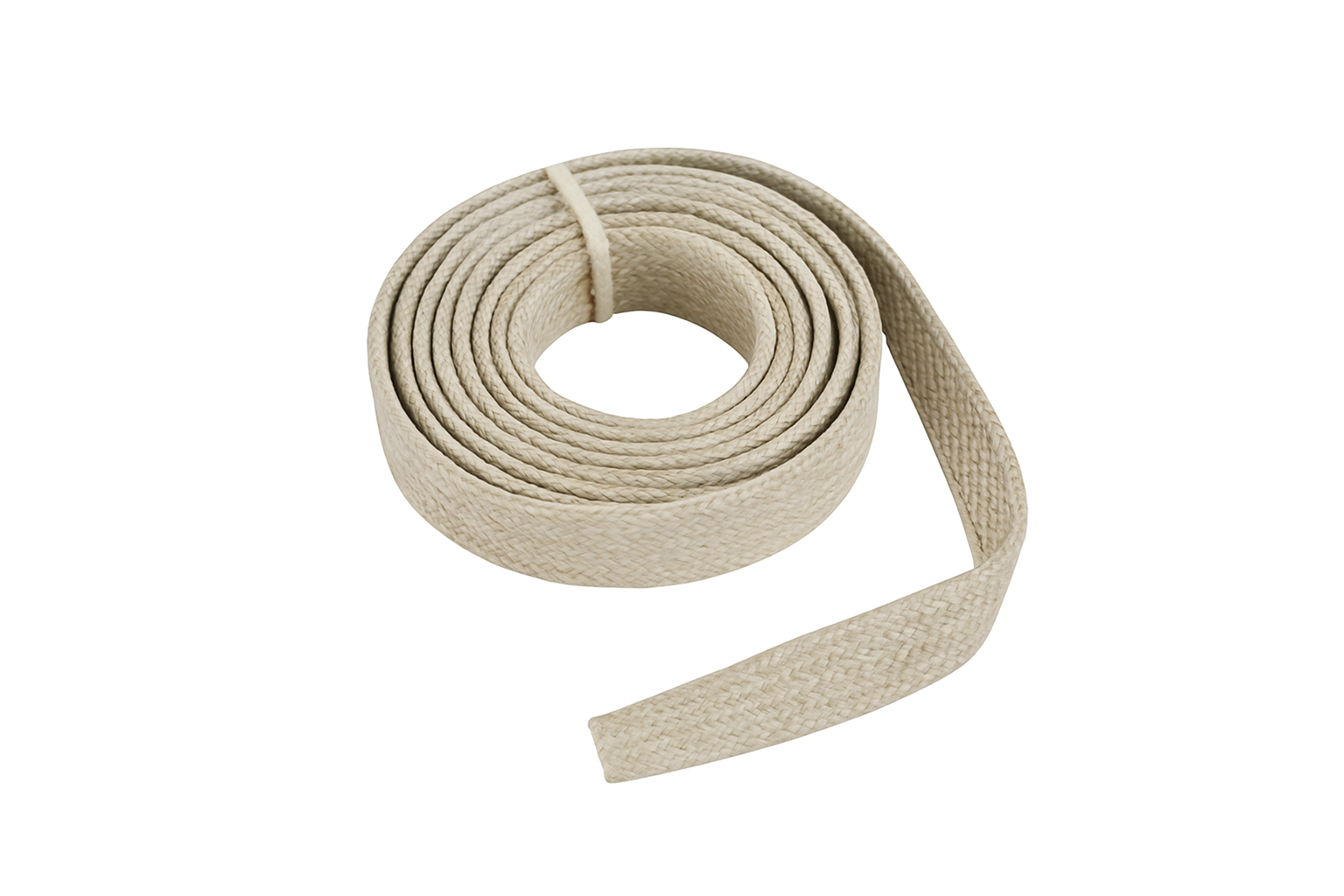

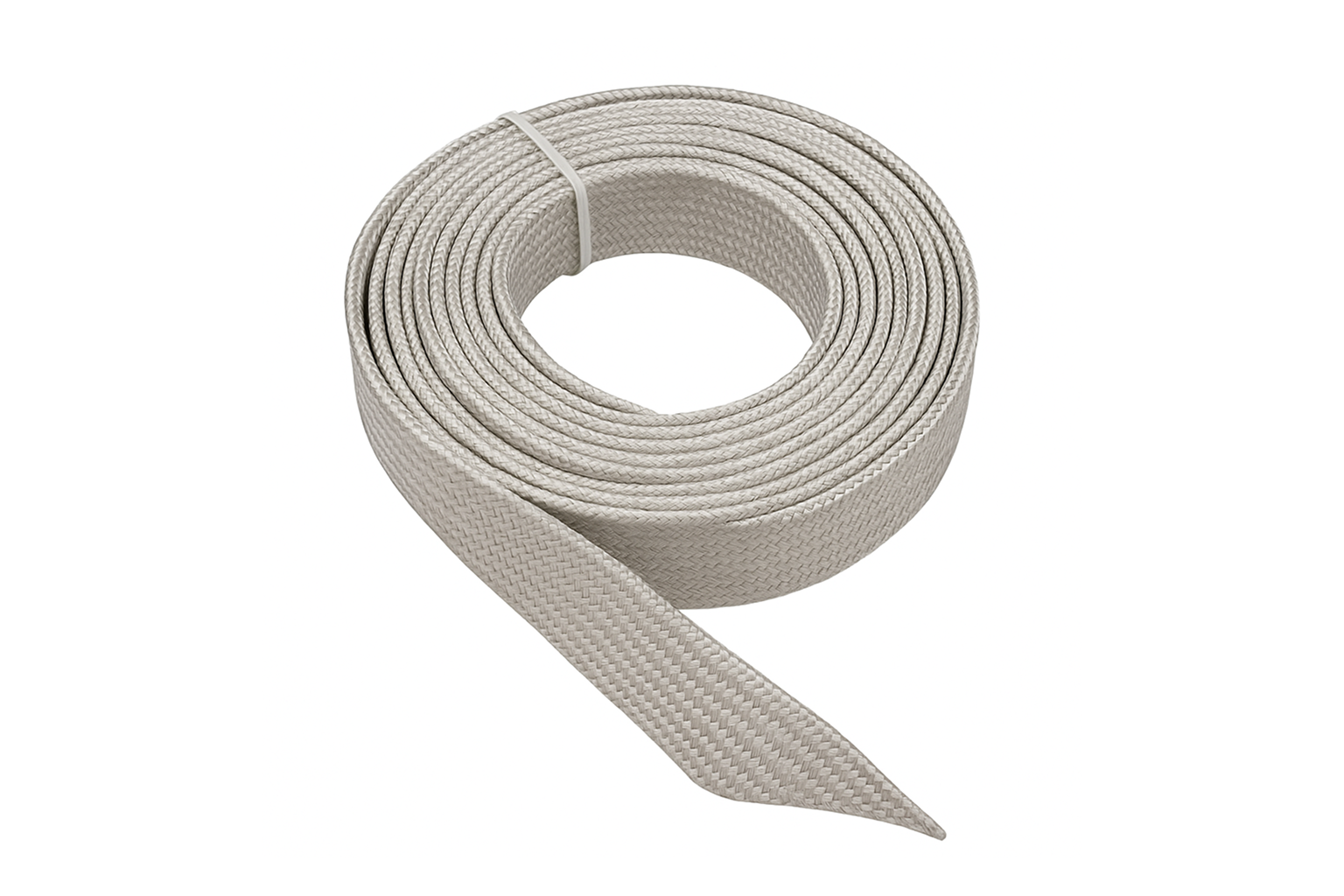

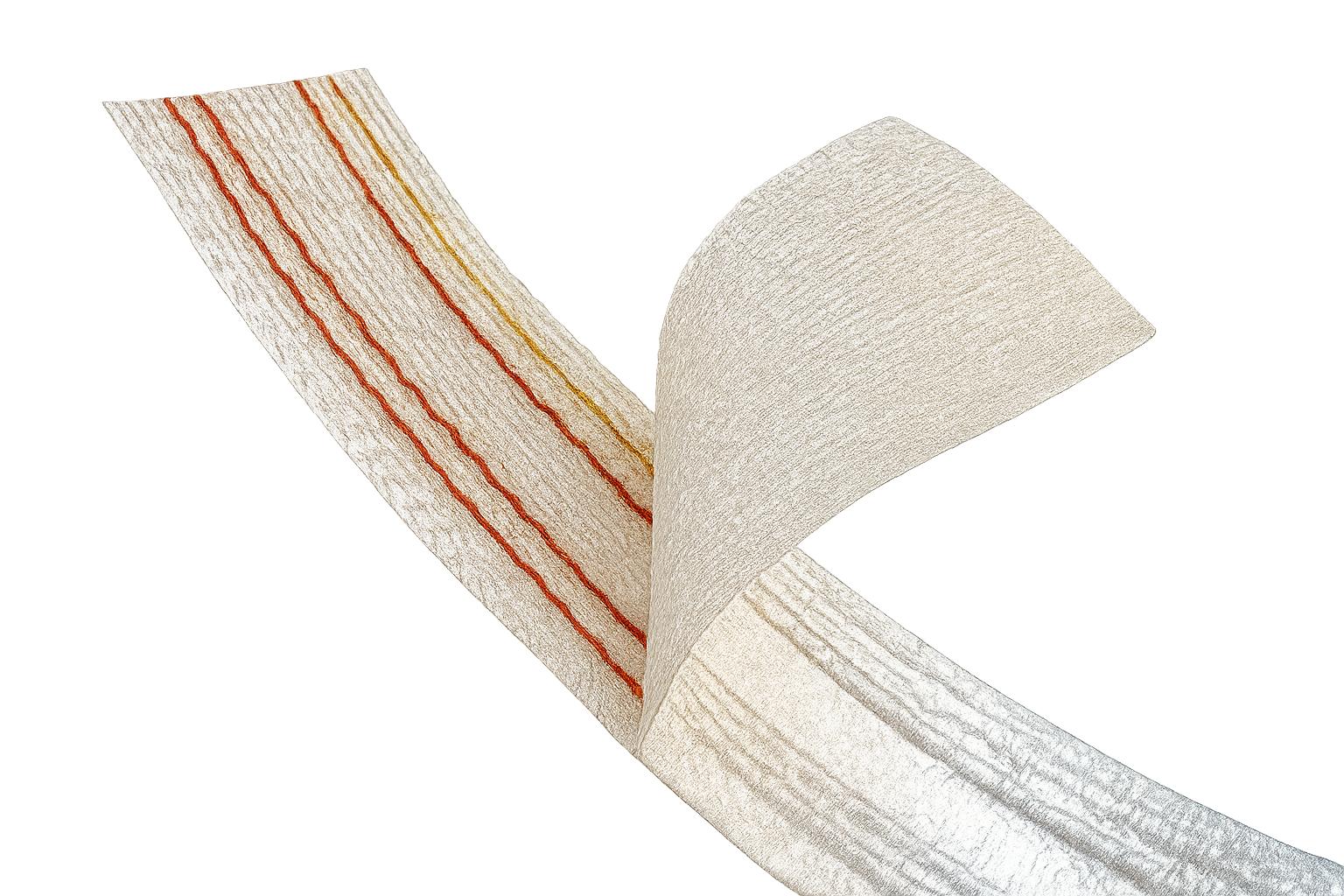

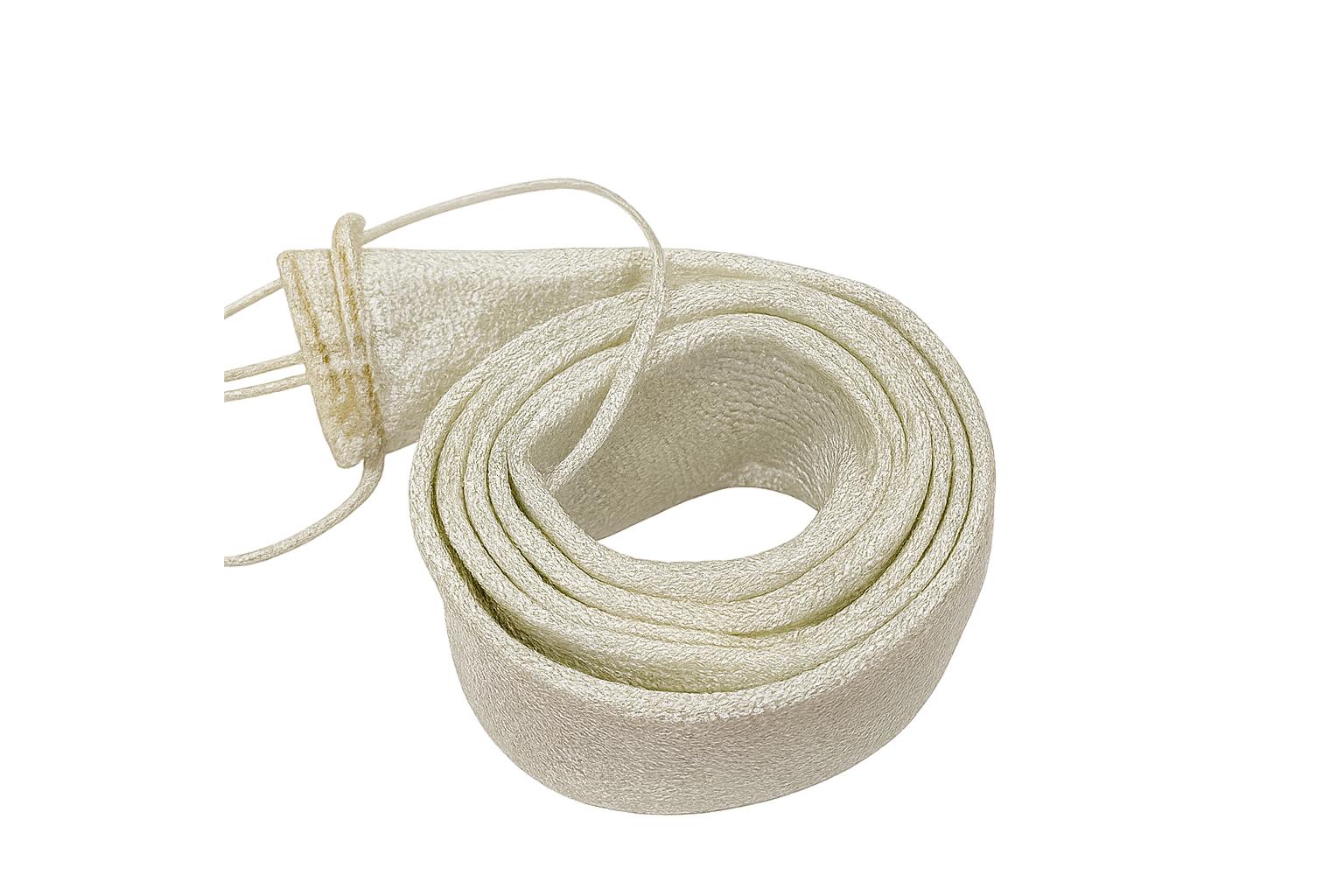

Tape heaters are thin, flexible heating elements designed to provide precise, uniform heat across surfaces where traditional heaters cannot be used due to space constraints. Their compact size and adaptability make them ideal for wrapping around pipes, valves, tanks, or other irregular equipment for surface heating, freeze protection, and temperature maintenance.

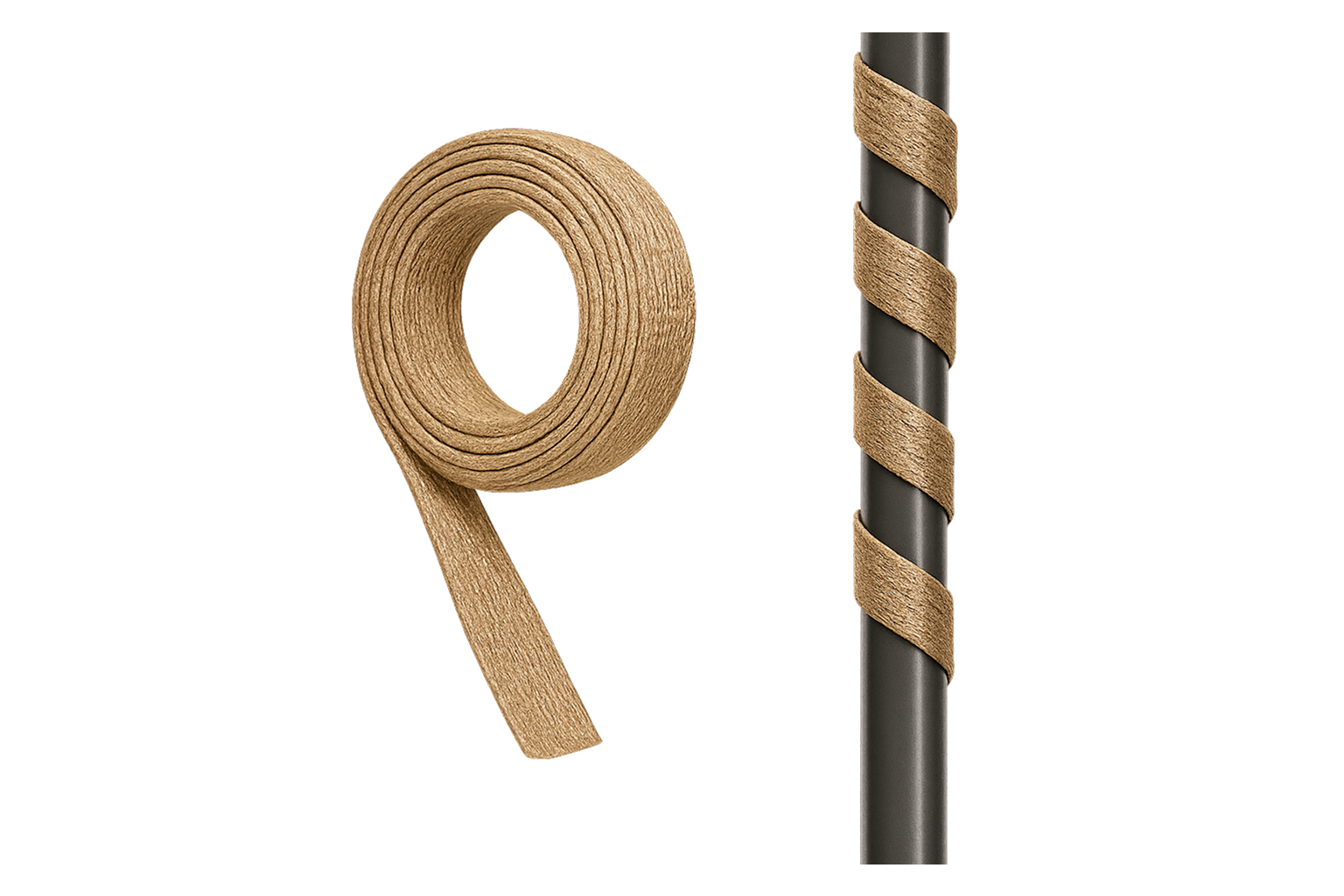

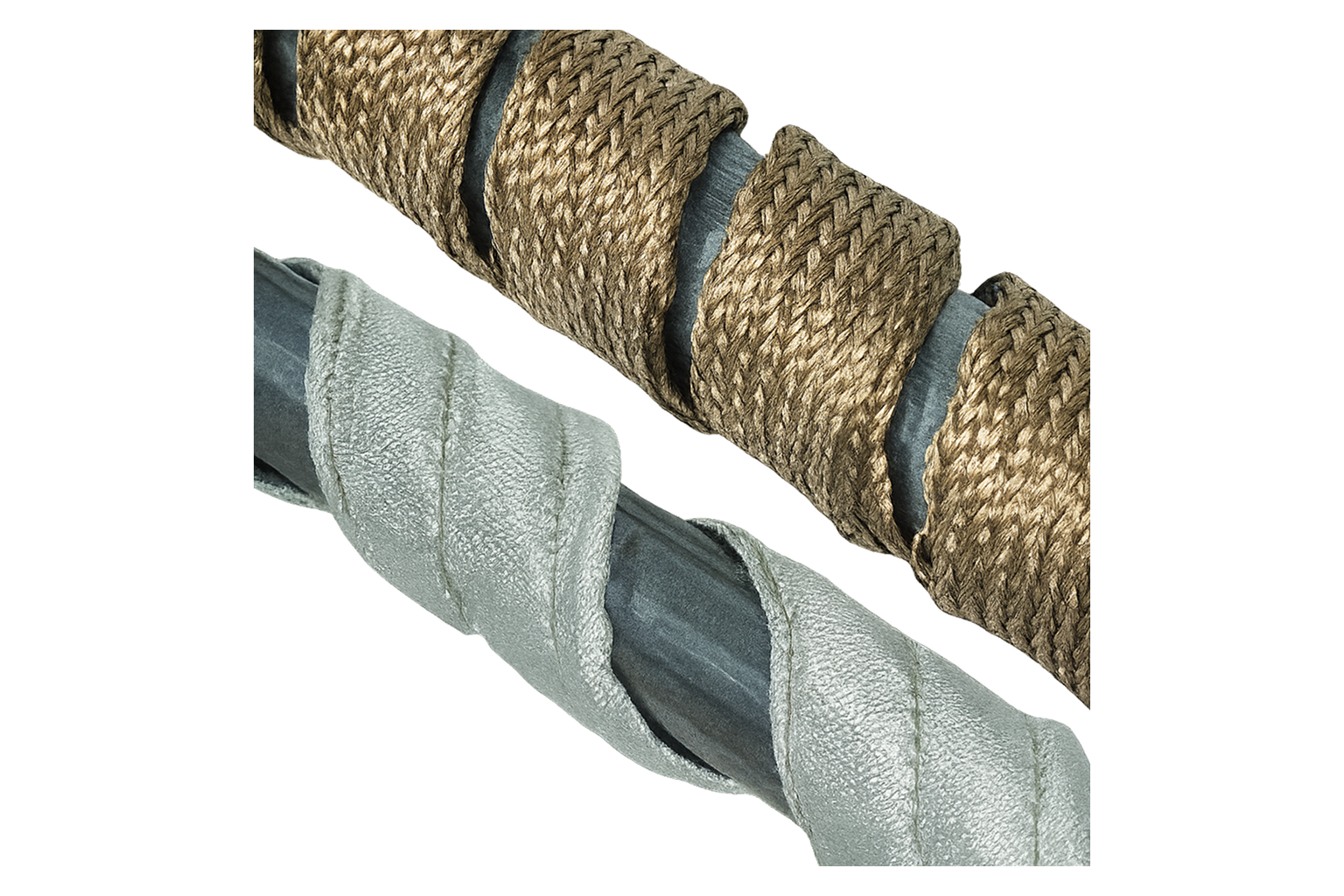

Easy to wrap around cylindrical or uneven surfaces.
Ensures even surface temperature with no hot spots.
Designed to handle demanding thermal environments.
Insulated to prevent electrical leakage and ensure safe operation.
Can be tailored to specific requirements for size, voltage, and power.
| Parameter | Details |
|---|---|
| Operating Voltage | 110V to 240V AC/DC |
| Power Output | 5 – 20 W/ft (customizable) |
| Max Operating Temp | Up to 600°C |
| Width | 10mm – 25mm |
| Outer Sheath Options | Fiberglass or Silica Quartz |
| Termination | Leads with crimped or soldered ends |
We offer tape heaters in various power ratings, lengths, and sheath materials to suit your unique industrial application. From compact designs to rugged thermal solutions, our tape heaters ensure efficiency and reliability where space and precision matter most.
