Thermocouple sensors are precision instruments for accurate temperature measurement across industries. Using dissimilar metal wires, they generate a small voltage corresponding to temperature, making them ideal for process control, automation, and industrial heating feedback.
Renowned for their fast response and durability, they are a reliable choice for both laboratory and heavy-duty industrial use.
Measures from -200°C up to +1350°C depending on type.
Quickly detects temperature fluctuations for precise control.
Available in J, K, T, E, N, R, S, and B variants.
Built for harsh industrial environments and long service life.
Options include mineral-insulated, armored, or flexible leads.
Essential for precise temperature control in heating equipment.
Monitoring heaters and extrusion machinery.
Reliable temperature sensing for hygienic processes.
Ensures accurate cooling and heating regulation.
Used in energy plants, labs, and R&D equipment.
| Parameter | Specification |
|---|---|
| Temperature Range | -200°C to +1350°C (type dependent) |
| Thermocouple Types | J, K, T, E, N, R, S, B |
| Accuracy | ±1.1°C or 0.4% of reading |
| Sheath Material | SS304, SS316, Inconel, or custom |
| Junction Type | Grounded, Ungrounded, or Exposed |
| Probe Diameter | 1mm – 10mm (customizable) |
| Probe Length | 50mm – 1000mm (or custom) |
| Insulation Options | Fiberglass, PTFE, Ceramic Bead, PVC |
| Output Lead | Compensating cables with connectors |

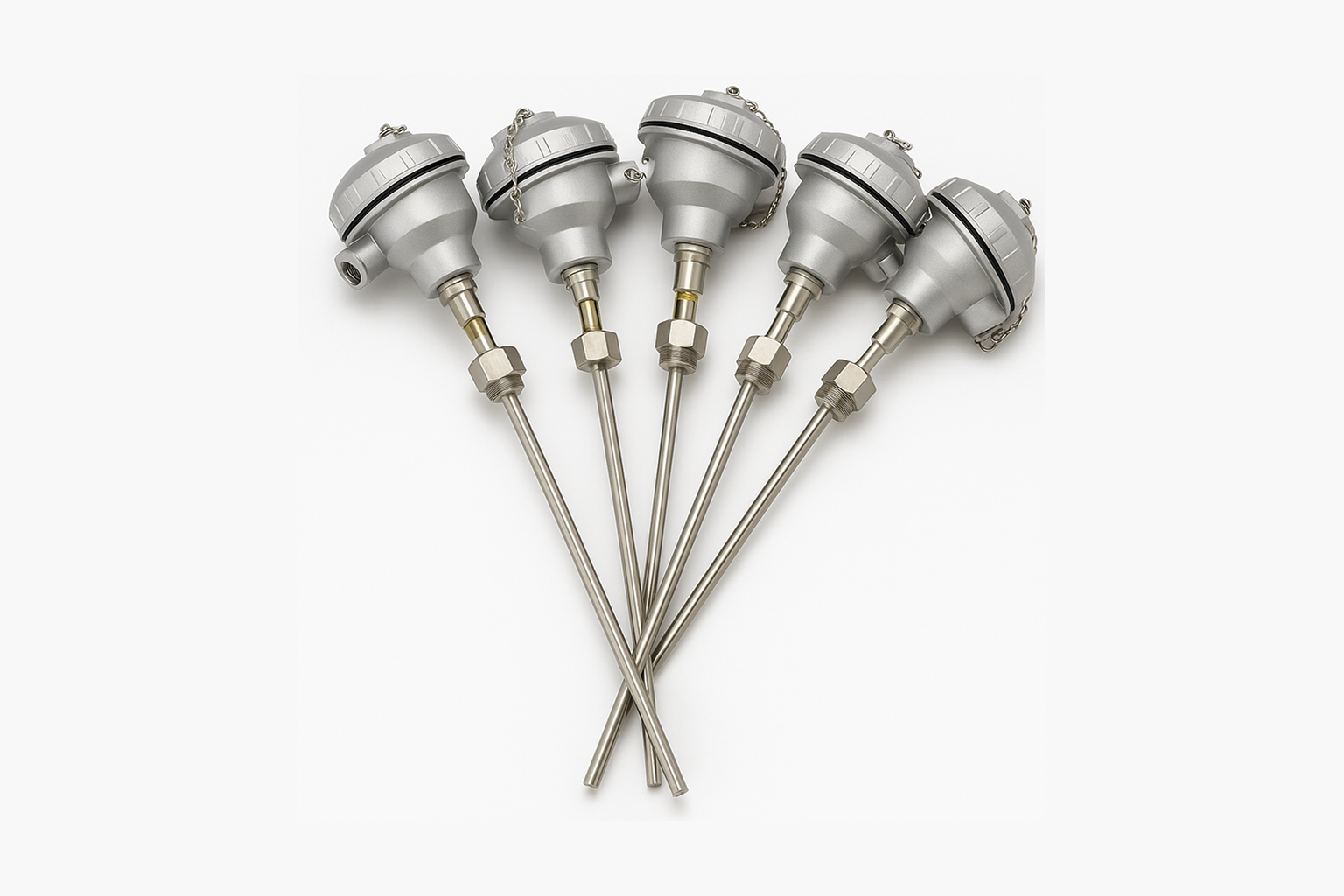

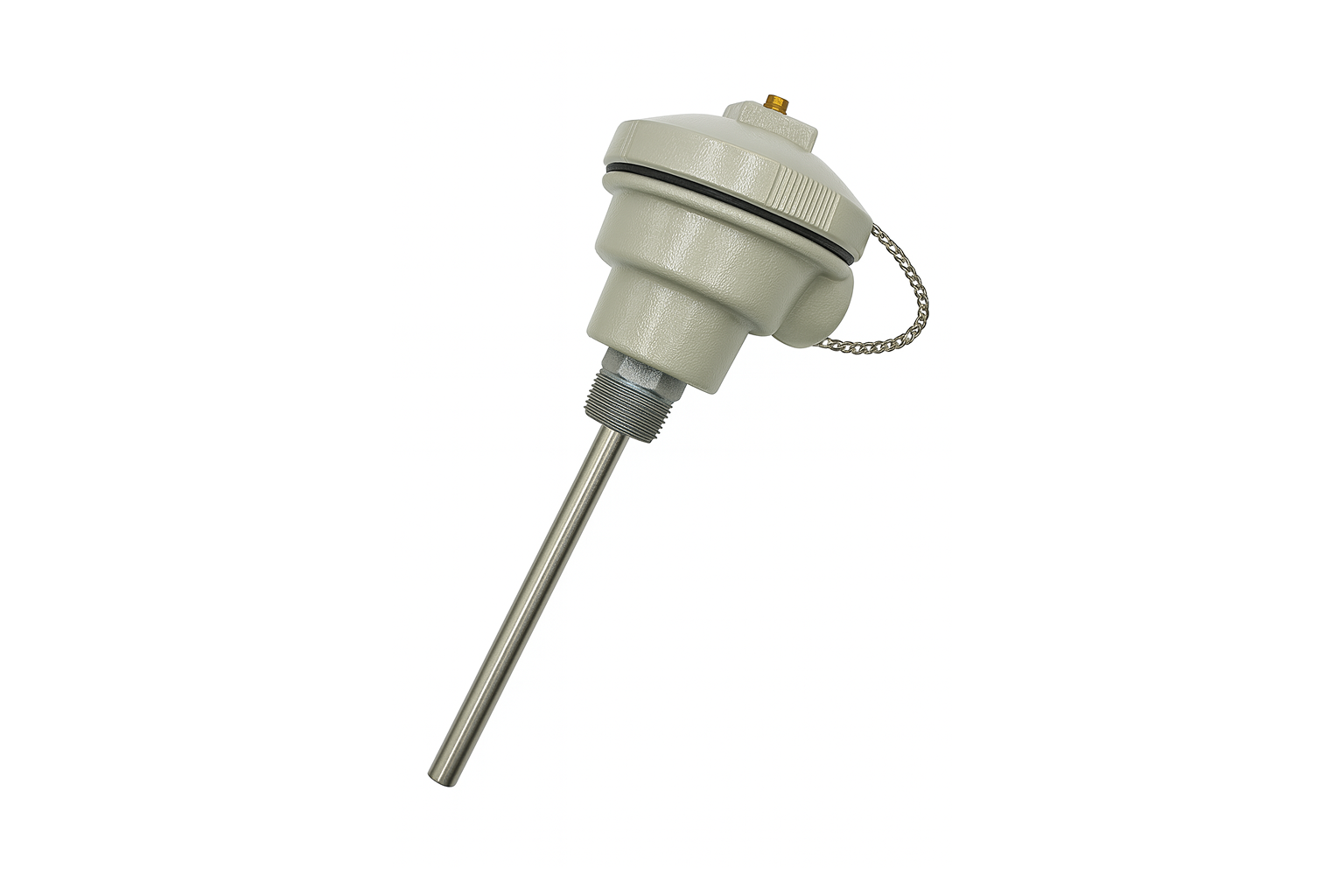

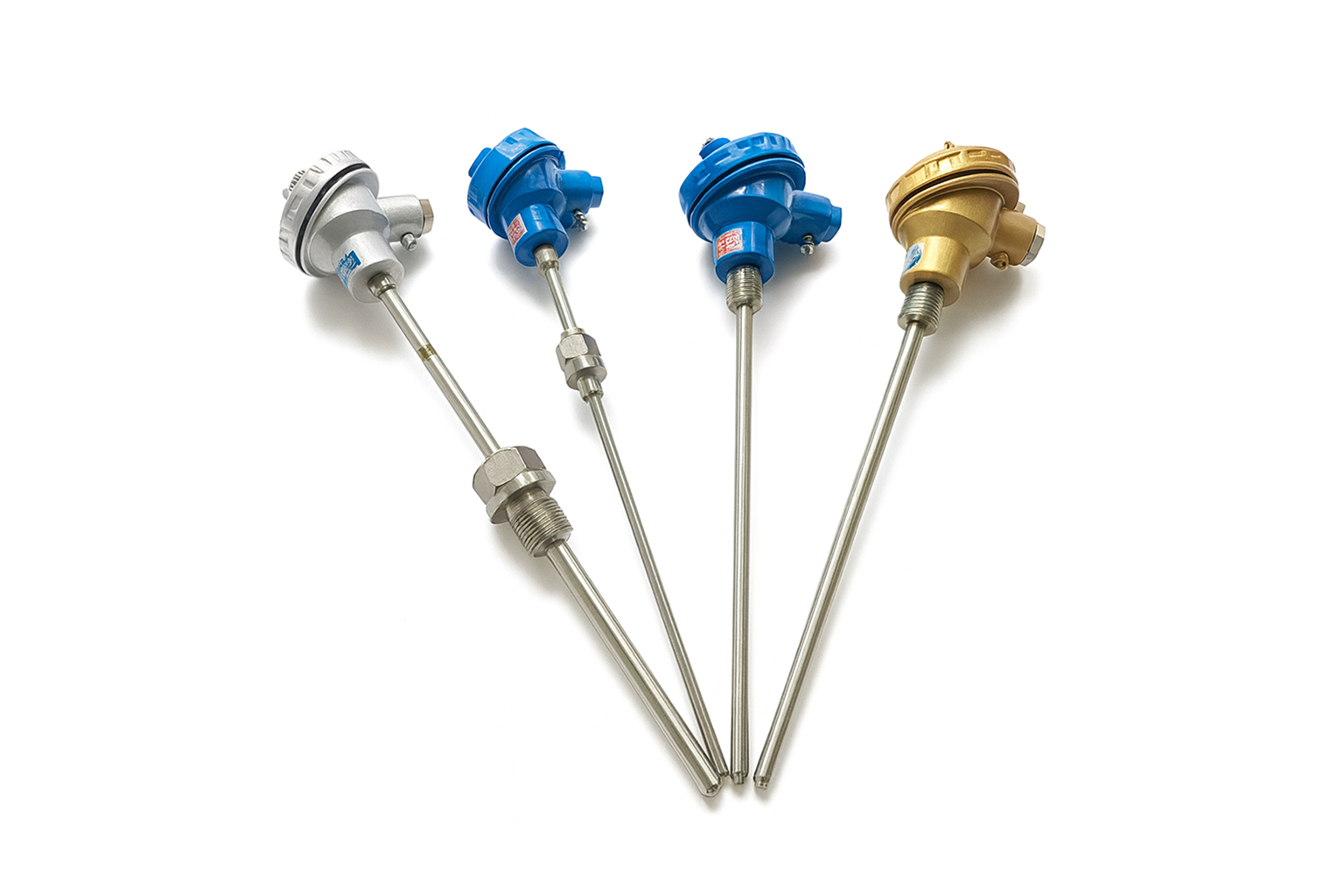

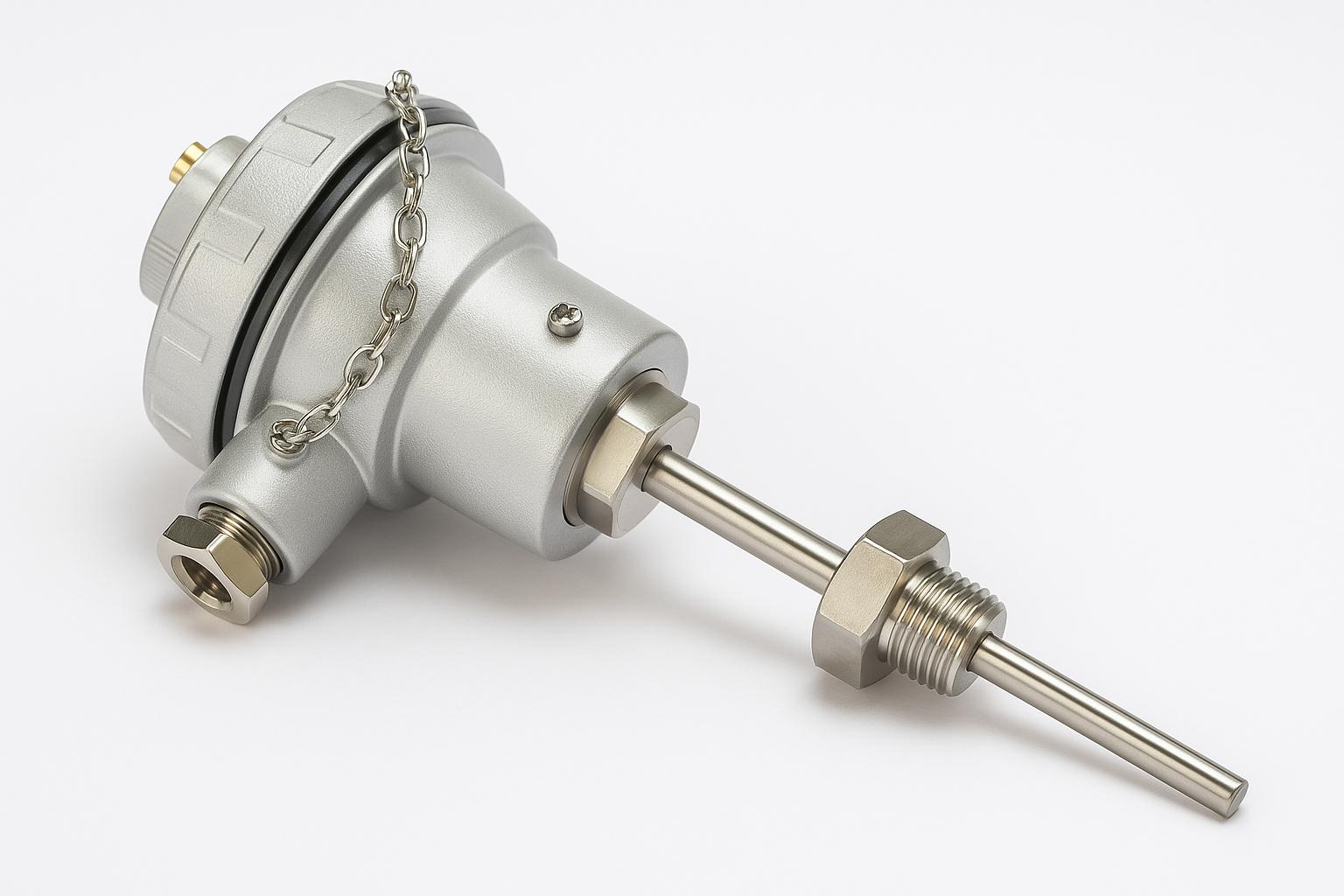

We provide thermocouples in various configurations—beaded wire, probe-style, multipoint, or with threaded fittings. Custom probe lengths, sheath materials, and connector types can be manufactured based on your application.
